The importance of reliable Hydraulic Hose and frac hose solutions is receiving greater attention across construction, mining, manufacturing and oilfield operations, where fluid-transfer systems frequently operate under demanding pressure, temperature and environmental conditions.
Industrial operators depend on hoses for applications ranging from transmitting hydraulic power in mobile machinery to transferring large volumes of fluids at hydraulic fracturing sites. Industry specialists emphasise that hose selection should be based on the complete application rather than diameter or pressure rating alone.
Factors including fluid compatibility, flow requirements, operating temperature, abrasion, reinforcement, bend radius and fittings can all influence the suitability of a hose assembly.
Hydraulic Hose Remains a Key Component in Heavy Equipment
A Hydraulic Hose provides a flexible pathway for pressurised hydraulic fluid between pumps, valves, cylinders, motors and other system components.
Hydraulic technology is extensively used because it can generate significant mechanical force while providing precise control. Construction equipment, agricultural machinery, industrial presses and material-handling systems are among the many applications relying on hydraulic power.
Typical applications include:
- Excavators
- Loaders
- Cranes
- Forklifts
- Tractors
- Mining machinery
- Industrial presses
- Manufacturing equipment
Unlike rigid pipework, a Hydraulic Hose can accommodate movement and vibration when correctly specified and routed.
Hose Construction Plays a Major Role in Performance
Industrial hydraulic hoses generally contain several engineered layers.
The inner tube carries the fluid and must remain compatible with the specified hydraulic media. Reinforcement provides resistance against internal pressure, while the external cover protects the structure against abrasion and environmental exposure.
Depending on the application, reinforcement may include textile braid, steel-wire braid or spiral-wire construction.
These variations mean that two hoses of similar dimensions can have considerably different operating capabilities.
Industry users are therefore encouraged to evaluate complete technical specifications rather than selecting hoses by external appearance.
Frac Hose Supports Specialised Oilfield Operations
The operating requirements change significantly when fluid transfer moves from conventional machinery to an oilfield environment.
A frac hose is associated with specific transfer applications used during hydraulic fracturing and related wellsite activities.
Depending on hose construction and manufacturer specifications, these lines may be used with:
- Water
- Fracturing mixtures
- Slurry
- Chemical solutions
- Compatible oilfield fluids
High-volume transfer can be an important consideration in these operations, making internal diameter and flow capacity significant selection factors.
Field Conditions Increase Demands on Frac Hose
Oilfield applications can expose hoses to conditions that differ substantially from controlled factory environments.
A frac hose may encounter abrasive ground surfaces, dust, mud, outdoor weather, frequent movement and changing temperatures. Internally, the transferred media may contain chemical additives or suspended solids.
This combination creates several potential challenges.
Manufacturers and suppliers may therefore consider factors such as abrasion resistance, reinforcement, inner-lining compatibility, pressure capability and coupling design when recommending hoses for specific frac applications.

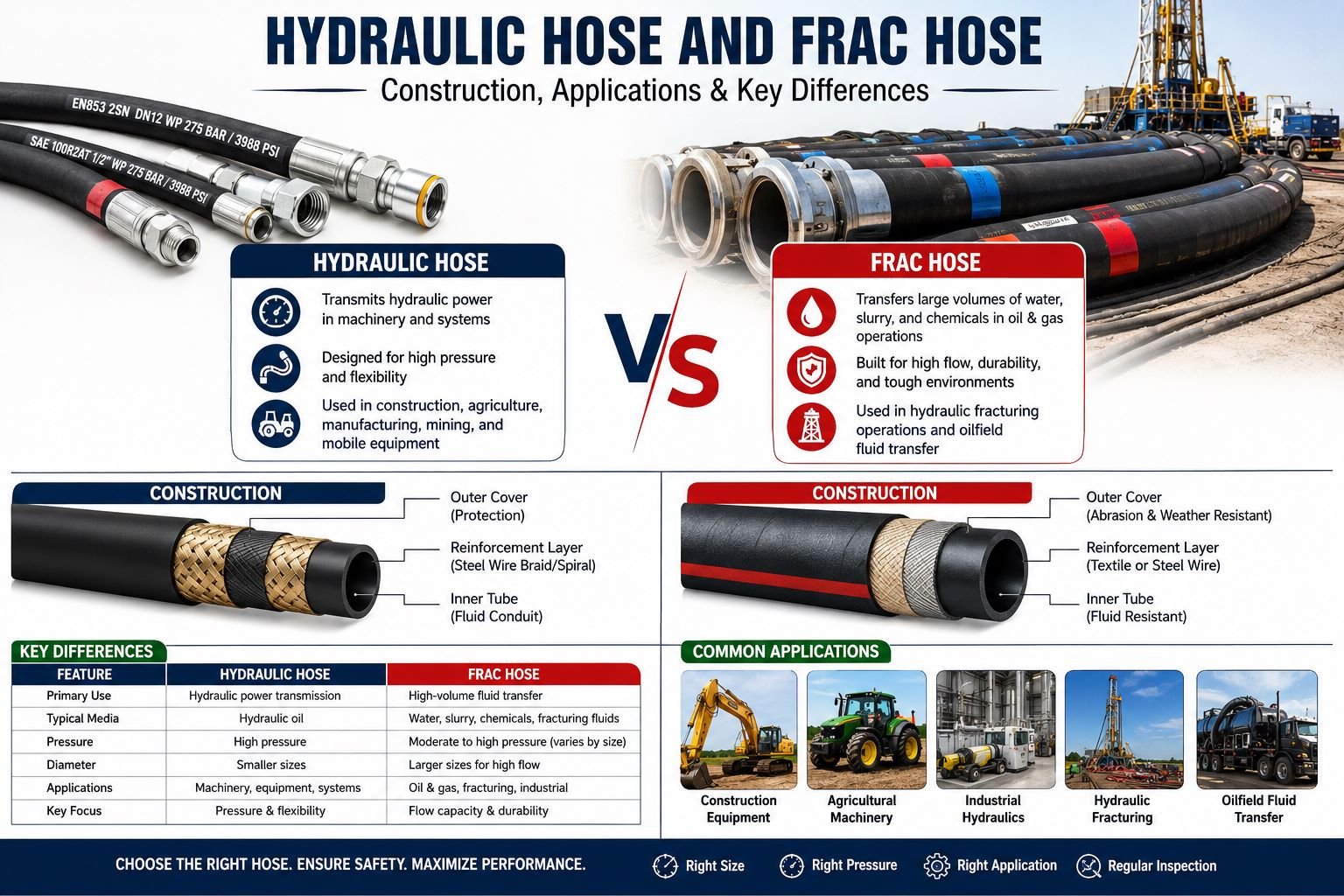

Hydraulic Hose and Frac Hose Serve Different Requirements
| Area | Hydraulic Hose | Frac Hose |
| Primary application | Hydraulic machinery | Oilfield fluid transfer |
| Main function | Hydraulic power transmission | Transfer of process fluids |
| Typical media | Hydraulic fluid | Water, slurry and compatible frac fluids |
| Flow requirement | Hydraulic circuit dependent | Often high-volume |
| Working environment | Machinery and industrial systems | Outdoor wellsite operations |
| Key concern | Pressure, movement and temperature | Flow, abrasion and media compatibility |
Industry professionals caution against treating the two hose categories as automatically interchangeable.
Working Pressure Continues to Be a Critical Specification
Pressure rating remains one of the most important technical considerations when purchasing a Hydraulic Hose.
Hydraulic circuits can operate under substantial pressure and may experience pressure pulsations during normal machine operation. A hose assembly must therefore be appropriate for the intended operating conditions.
Buyers also need to distinguish between working pressure and burst pressure.
Working pressure represents the specified operating capability of the hose under defined conditions. Burst pressure relates to destructive testing and should not be considered a normal operating limit.
Similar principles apply to frac hose selection, where pressure requirements should be established according to the intended transfer system.
Flow Rate Moves Higher on the Selection Checklist
Industry users are also paying closer attention to fluid flow.
When a hose has insufficient internal diameter, fluid velocity may rise and pressure losses can increase.
For a Hydraulic Hose, incorrect sizing can influence hydraulic system efficiency and potentially contribute to additional heat generation.
For frac applications, insufficient diameter may restrict the large transfer volumes required by the operation.
Key sizing considerations include:
- Required flow rate
- Internal diameter
- Hose length
- Fluid characteristics
- Operating pressure
- Permissible pressure drop
Correct sizing should therefore be based on system requirements rather than fitting dimensions alone.
Fluid Compatibility Emerges as an Important Purchasing Factor
Another area receiving attention is compatibility between hose materials and the transferred media.
The inner tube remains in direct contact with the fluid throughout operation. If the material is incompatible, deterioration may occur internally.
Possible effects can include softening, swelling, hardening or cracking.
For a Hydraulic Hose, buyers should identify the specific hydraulic fluid being used.
For a frac hose, additional information may be required because transferred media can contain water, chemical additives and abrasive solids.
Industry specialists recommend reviewing manufacturer compatibility guidance when unusual or specialised fluids are involved.
Temperature Can Influence Hose Service Conditions
Both internal and external temperature conditions can affect hose materials.
A hydraulic hose positioned near an engine, exhaust component or other heat source may experience considerable external thermal exposure.
A frac hose operating outdoors can encounter different environmental temperatures throughout the working period.
Selecting a hose within its specified temperature limits is therefore important.
Where external heat sources cannot be avoided, appropriate routing or protective measures may be required.
Installation Practices Remain a Major Concern
Even an appropriate Hydraulic Hose can deteriorate prematurely when installed incorrectly.
Industry maintenance teams commonly look for routing issues including:
- Excessive twisting
- Tight bends
- Continuous rubbing
- Sharp-edge contact
- Crushing
- Unnecessary tension
- Excessive heat exposure
Minimum bend radius is an important manufacturer specification. Forcing a hose into a tighter bend can place additional stress on its construction.
For frac hose installations, field routing may also need to account for vehicle movement, rough surfaces and other potential sources of mechanical damage.
Fittings Become Part of the Reliability Discussion
A hose cannot be evaluated separately from its connections.
Fittings must correspond with hose construction, dimensions, working pressure and equipment interfaces.
For crimped Hydraulic Hose assemblies, the hose, fitting and crimping procedure should form a compatible system.
A similar principle applies to frac hose couplings, particularly where demanding pressure and flow conditions are involved.
Industry professionals advise against mixing components without confirming technical compatibility.
Preventive Inspection Can Identify Early Warning Signs
Maintenance teams are increasingly focused on detecting deterioration before complete hose failure.
Warning signs can include:
- Cracking
- Abrasion
- Fluid leakage
- Blisters
- Kinking
- Exposed reinforcement
- Damaged fittings
- Corrosion
- Flattened sections
- Unusual deformation
Inspection frequency should reflect operating conditions, manufacturer recommendations and relevant maintenance procedures.
High-pressure hydraulic leaks require particular caution and should be addressed using appropriate safety practices.
Buyers Encouraged to Provide Complete Application Data
For more accurate hose selection, manufacturers and suppliers typically need more than a diameter and length.
Buyers should be prepared to provide:
Size: Internal diameter and overall length.
Pressure: Intended system working conditions.
Temperature: Fluid and ambient temperature.
Media: Exact fluid or chemical composition.
Flow: Required transfer rate.
Application: Equipment and operating environment.
Connections: Fitting or coupling requirements.
For frac hose, additional information about slurry, abrasive particles and field handling conditions may also be relevant.
Frequently Asked Questions
1. What is a Hydraulic Hose?
It is a flexible reinforced line designed to transport pressurised hydraulic fluid within machinery and hydraulic systems.
2. What is a frac hose?
It is a hose designed for specific fluid-transfer duties associated with hydraulic fracturing and oilfield operations.
3. Where are hydraulic hoses commonly used?
They are widely used in construction, agriculture, mining, manufacturing and material-handling equipment.
4. What fluids can a frac hose transfer?
Depending on its specification, it may transfer water, slurry, fracturing mixtures, chemicals and other compatible media.
5. Are hydraulic hoses and frac hoses interchangeable?
Not necessarily. Their construction, pressure capability, flow requirements and media compatibility can differ.
6. Why is hose diameter important?
Diameter affects fluid velocity, pressure loss and overall transfer capacity.
7. What is working pressure?
It is the specified pressure at which a hose is intended to operate under defined conditions.
8. Is burst pressure a working limit?
No. Burst pressure is associated with destructive testing rather than normal operation.
9. What commonly causes hose wear?
Abrasion, excessive temperature, incorrect routing, incompatible media and mechanical damage are common contributors.
10. Why are hose fittings important?
Fittings complete the assembly and must be compatible with the hose, pressure and equipment connection.
