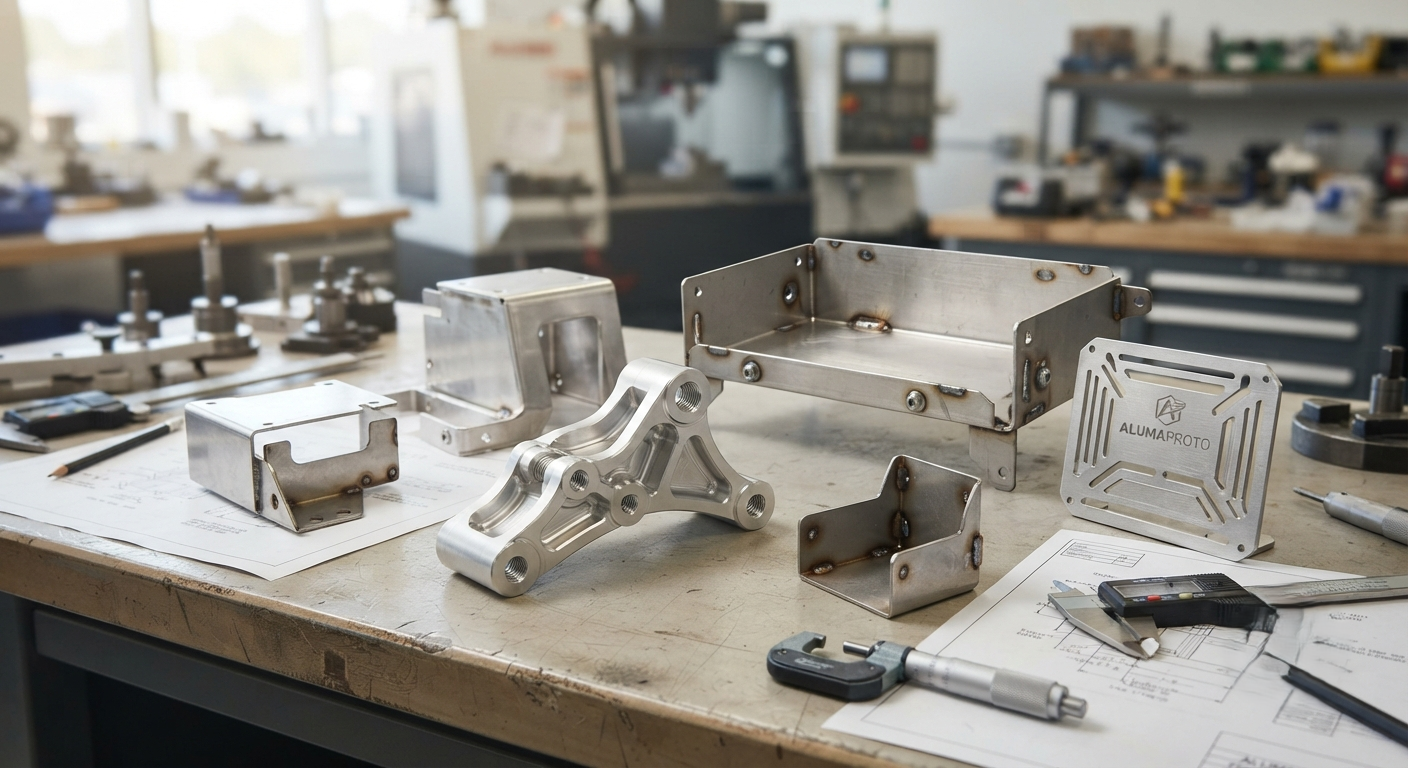

A promising product idea can look perfect on a computer screen and still reveal unexpected problems once it becomes a physical part. Dimensions may interfere with assembly, mounting holes may be difficult to access, materials may behave differently under load, or a component may simply be too complicated to manufacture economically.
This is why manufacturers increasingly rely on aluminum prototype development and sheet metal prototyping before moving towards full production. These methods give designers and engineers an opportunity to test real components, improve designs and understand manufacturing challenges while changes are still relatively easy to make.
From electronics and automotive components to robotics and industrial machinery, metal prototyping has become an important bridge between digital design and practical manufacturing.
Why Physical Prototyping Still Matters in a Digital Engineering World
Modern CAD and simulation tools provide impressive insight into how a product might behave. However, digital modelling cannot completely replace physical evaluation.
A prototype can reveal practical issues involving:
- Component fit and clearance
- Fastener accessibility
- Weight and balance
- Assembly sequence
- Surface appearance
- Mechanical strength
- Heat management
- Manufacturing feasibility
For example, an engineer may design an enclosure that looks compact and efficient digitally. Once manufactured, however, there may not be enough room to install internal electronics comfortably.
Creating a prototype allows these issues to be identified before production quantities increase.
What Makes an Aluminum Prototype Valuable?
An aluminum prototype is a physical sample produced from aluminium alloy, usually through CNC machining or another precision manufacturing process.
Unlike basic visual prototypes, aluminium components can often be used for meaningful functional testing because they provide real metal characteristics.
CNC machining is particularly popular for prototype production. Manufacturers can take a CAD model and machine aluminium stock into the required geometry without creating expensive moulds.
This approach is useful for components such as:
- Equipment housings
- Robotic components
- Mounting blocks
- Heat sinks
- Automotive parts
- Aerospace components
- Medical equipment parts
- Precision fixtures
An aluminum prototype can therefore help engineers evaluate both the appearance and practical behaviour of a product.
Why Aluminium Is Frequently Selected for Prototypes
Aluminium combines several characteristics that make it attractive for product development.
It is lightweight compared with many engineering metals while still providing useful mechanical strength. It also machines relatively efficiently and offers good corrosion resistance.
Other benefits include good thermal conductivity, dimensional stability and compatibility with numerous surface finishes.
Common finishing choices include anodising, polishing, bead blasting, brushing and painting.
Aluminium 6061 is widely considered for general engineering applications, while alloys such as 7075 may be appropriate where higher strength is necessary.
Material selection should always be based on the actual operating conditions of the component rather than choosing an alloy solely because it has higher specifications.
What Is Sheet Metal Prototyping?
While CNC machining generally begins with solid stock, sheet metal prototyping starts with flat metal material.
The sheet is cut into a developed profile and subsequently formed into its three-dimensional shape.
Manufacturing may involve:
- Laser cutting
- Punching
- Press-brake bending
- Welding
- Riveting
- Hardware insertion
- Surface finishing
The process is particularly suitable for brackets, panels, cabinets, covers, chassis and enclosures.
Aluminium can be used, but sheet metal prototyping is also commonly performed with stainless steel, mild steel, copper and other suitable materials.
Where Sheet Metal Prototypes Are Commonly Used
Think about an electrical control cabinet. Most of its structure consists of relatively thin flat surfaces connected through bends and joints.
Machining the entire cabinet from a solid block would generally be unnecessarily complicated and wasteful.
Sheet metal fabrication provides a more appropriate manufacturing route.
Typical applications include:
- Electrical enclosures
- Battery housings
- Server chassis
- Industrial machine guards
- Automotive brackets
- Telecommunications equipment
- Ventilation components
- Control panels
- Equipment covers
Creating prototypes of these products allows engineers to verify dimensions, installation requirements, openings, mounting points and accessibility before committing to production.
Aluminum Prototype vs Sheet Metal Prototyping
Both processes manufacture metal components, but their strengths are different.
| Feature | Aluminum Prototype | Sheet Metal Prototyping |
| Starting material | Aluminium billet or block | Flat metal sheet |
| Typical process | CNC machining | Cutting and bending |
| Complex 3D shapes | Excellent | More limited |
| Thin enclosures | Less efficient | Excellent |
| Precision features | Highly suitable | Suitable with correct processes |
| Material removal | Higher | Lower |
| Common components | Housings, blocks, mechanical parts | Brackets, panels, chassis |
| Finishing | Anodising, polishing, blasting | Powder coating, plating, painting |
| Prototype quantities | Suitable | Suitable |
| Low-volume production | Suitable | Suitable |
Rather than asking which process is better, designers should ask which process matches the geometry and intended production method.
How Aluminum Prototype Manufacturing Supports Design Validation
Suppose a company is developing a compact robotic system.
The internal mechanical components may require accurate bearing locations, threaded holes, motor mounting surfaces and precision alignment.
An aluminum prototype enables engineers to assemble actual hardware and determine whether the design works under realistic conditions.
They can examine:
- Alignment between components
- Mounting accuracy
- Structural rigidity
- Fastener access
- Moving-part clearance
- Heat transfer
- Overall assembly behaviour
If a problem is discovered, engineers can modify the CAD design before committing to larger production quantities.
How Sheet Metal Prototyping Improves Manufacturability
Sheet metal prototyping provides similar advantages for fabricated components, but it also reveals problems associated specifically with bending and forming.
Metal does not behave like paper when folded. During bending, one side experiences compression while the other experiences tension.
Designers therefore need to consider bend radius, bend allowance, material thickness and hole locations.
A prototype may reveal that a hole is too close to a bend, a flange is difficult to form, or several bends create unnecessary manufacturing complexity.
Solving these problems early can make future production considerably more practical.
Important Design Considerations for Aluminum Prototypes
An effective CNC design should consider the capabilities of cutting tools.
Avoid Unnecessarily Deep Cavities
Deep pockets often require long tools, which may increase vibration and machining difficulty.
Allow Internal Corner Radii
Rotating cutting tools cannot directly create perfectly sharp internal corners. Appropriate radii make components easier to machine.
Avoid Extremely Thin Walls
Thin sections may deform during machining, especially when large amounts of surrounding material are removed.
Specify Practical Tolerances
Not every dimension needs an extremely restrictive tolerance.
Tighter tolerances can require additional machining and inspection, so precision should be specified where it genuinely affects performance.
Important Design Considerations for Sheet Metal Prototypes
Good sheet metal prototyping begins with designing for bending and fabrication.
Keep Features Away from Bend Lines
Holes and slots positioned too close to bends can become distorted during forming.
Use Appropriate Bend Radii
The correct bend radius depends on the material, thickness and fabrication process.
Reduce Unnecessary Operations
Every bend, weld and secondary process contributes to manufacturing time and complexity.
Simplifying the design while maintaining functionality can make both prototyping and future production more efficient.
Can Both Processes Be Used in the Same Product?
Absolutely. Many modern products combine CNC-machined and sheet-metal components.
Consider an industrial automation system.
Precision motor mounts, bearing housings and structural connectors may be produced as an aluminum prototype, while external guards, electrical cabinets and mounting panels may use sheet metal prototyping.
Combining processes allows engineers to select the most appropriate manufacturing technology for each component instead of forcing an entire assembly into one production method.
What Determines the Cost of Metal Prototyping?
Prototype pricing depends on much more than the amount of metal used.
For machined aluminium components, important factors include:
- Component dimensions
- Geometry
- Machining time
- Material grade
- Required tolerance
- Surface finish
- Number of setups
- Inspection requirements
For sheet-metal components, cost may depend on material thickness, cutting complexity, number of bends, welding, hardware installation and finishing.
Design for Manufacturing, commonly called DFM, is therefore valuable before production begins.
A relatively small design modification can sometimes eliminate an unnecessary machining setup, bend or joining operation.
From Prototype to Low-Volume Production
One advantage of modern manufacturing is that prototyping does not necessarily exist as an isolated stage.
Once an aluminum prototype has been validated, CNC machining can often continue to produce small batches without major tooling investment.
Similarly, sheet metal prototyping can progress into bridge or low-volume production using many of the same cutting, bending and fabrication techniques.
This creates a practical path:
Concept → CAD Design → Prototype → Testing → Design Improvement → Low-Volume Manufacturing → Production
Each stage provides information that helps refine the next.
Frequently Asked Questions
1. What is an aluminum prototype?
An aluminum prototype is a physical aluminium component produced to evaluate design, dimensions, functionality, assembly or manufacturing feasibility before larger-scale production.
2. Why is aluminium suitable for prototyping?
Aluminium offers good machinability, relatively low weight, useful strength, corrosion resistance and multiple finishing possibilities.
3. What is sheet metal prototyping?
Sheet metal prototyping involves cutting, bending and assembling flat metal sheets to produce prototype components such as brackets, panels and enclosures.
4. Is CNC machining suitable for aluminum prototypes?
Yes. CNC machining is widely used for producing detailed and accurate aluminium components directly from CAD models.
5. Can aluminium be used for sheet metal prototypes?
Yes. Aluminium sheet can be laser cut, bent, joined and finished for numerous prototype applications.
6. Which method is better for an enclosure?
Sheet metal prototyping is generally more suitable for thin-walled cabinets, covers, chassis and enclosures.
7. Which method works better for complicated 3D components?
CNC-machined aluminium is generally more suitable for components containing detailed three-dimensional features, pockets, channels and precision interfaces.
8. Can aluminum prototypes be anodised?
Yes. Anodising is frequently selected for aluminium components when surface protection and appearance are important.
9. Does sheet metal prototyping require tooling?
Many prototypes can be manufactured using laser cutting and press-brake forming without dedicated mass-production dies.
10. Why is DFM important in prototyping?
DFM identifies features that may increase manufacturing difficulty, cost or production risk before larger quantities are manufactured.
