Modern electronic devices increasingly depend on displays that do more than simply show information. From industrial control panels and medical equipment to smartphones, kiosks, automotive systems, and smart appliances, the combination of a capacitive touch screen and LCD display screen provides an efficient interface between users and machines.
Although these technologies are frequently integrated into one display module, they perform completely different functions. The LCD creates the visual output, while the capacitive touch layer detects user interaction. Understanding their construction, specifications, advantages, and application requirements is essential when selecting a display solution for commercial or industrial equipment.
What Is a Capacitive Touch Screen?
A capacitive touch screen is an input technology that detects changes in an electrical field when a conductive object, typically a human finger, touches the screen surface.
The touch panel contains a transparent conductive layer, commonly based on materials such as indium tin oxide. When a finger approaches or touches the surface, the electrical capacitance at that location changes. A touch controller measures this variation and calculates the exact position of the interaction.
Projected capacitive touch technology, often called PCAP or PCT, has become particularly common because it supports:
- Accurate touch detection
- Multi-touch gestures
- Smooth glass surfaces
- Excellent optical transparency
- High durability
- Fast response
- Custom cover glass
- Gesture-based operation
Pinching, zooming, swiping, rotating, and other familiar gestures are possible when supported by the operating system and touch controller.
What Is an LCD Display Screen?
An LCD display screen, or liquid crystal display, produces visual information by controlling how liquid crystals manipulate light.
Unlike OLED technology, liquid crystals generally do not generate their own illumination. Most modern LCD modules therefore use LED backlighting behind the display panel.
An LCD module typically incorporates liquid crystal cells, polarising layers, colour filters, glass substrates, driver electronics, and a backlight assembly.
Popular LCD technologies include TN, VA, and TFT LCD. TFT LCD screens are widely used where colour reproduction, graphical interfaces, reasonable viewing angles, and responsive image performance are important.
Screen specifications can vary significantly depending on the application. Common factors include resolution, brightness, viewing angle, contrast ratio, operating temperature, interface type, colour depth, and screen dimensions.

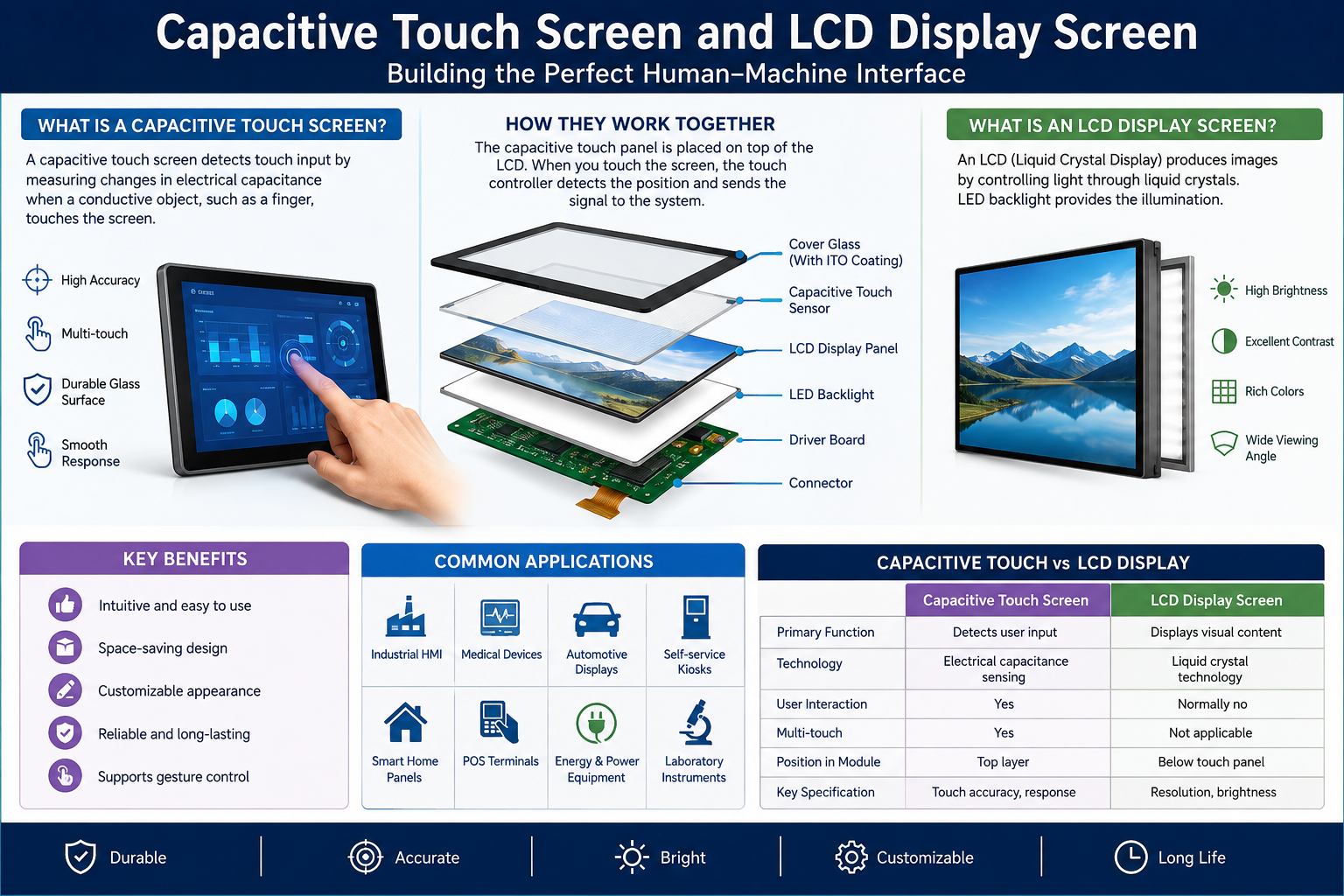

How Capacitive Touch Screen and LCD Display Screen Work Together
When manufacturers combine a capacitive touch screen with an LCD display screen, the two components form an interactive display module.
The LCD generates menus, graphics, buttons, measurements, images, or operating information. A transparent capacitive sensor installed above it detects where the user touches.
The basic operating sequence is:
- The LCD displays the graphical user interface.
- The user touches the cover glass.
- The capacitive sensor detects a change in capacitance.
- The touch controller identifies the coordinates.
- The controller sends touch data to the processor.
- The application performs the requested action.
- The LCD updates the displayed information.
This combination creates an intuitive human-machine interface without requiring conventional physical buttons.
Capacitive Touch Screen vs LCD Display Screen
| Feature | Capacitive Touch Screen | LCD Display Screen |
| Primary purpose | Detects user input | Displays visual content |
| Technology | Electrical capacitance sensing | Liquid crystal technology |
| User interaction | Yes | Normally no |
| Multi-touch | Often supported | Not applicable |
| Transparency | Designed to remain transparent | Produces visible images |
| Main controller | Touch controller IC | Display driver/controller |
| Position | Usually above display | Behind touch panel |
| Key specification | Touch accuracy | Resolution and brightness |
The two technologies therefore complement rather than compete with each other.
Important Features of Capacitive Touch Technology
Touch sensitivity is one of the most important considerations. A properly designed capacitive system should provide accurate input while minimising accidental touches and electrical interference.
Cover glass is another significant factor. Manufacturers can customise its thickness, dimensions, printed borders, surface treatment, holes, shapes, and branding according to equipment design.
Industrial environments may require additional characteristics such as glove operation, water tolerance, electromagnetic interference resistance, strengthened glass, and wide operating temperatures.
Optical bonding can also improve performance. Instead of leaving an air gap between the touch panel and display, transparent adhesive bonds the layers together. This can reduce internal reflections, improve readability, and create a stronger integrated structure.
Important LCD Display Screen Specifications
Resolution determines how many pixels are available for displaying information. Higher resolution generally provides sharper text and more detailed graphics, although processor performance and application requirements should also be considered.
Brightness becomes particularly important for equipment used near windows or outdoors. Standard indoor displays may not provide sufficient readability under strong ambient light.
Viewing angle matters when several operators may observe a screen from different positions. IPS-type TFT displays are frequently selected where wider viewing angles and stable colour reproduction are priorities.
Other specifications worth evaluating include:
- Contrast ratio
- Response time
- Active display area
- Backlight lifetime
- Connector configuration
- Power consumption
- Operating temperature
- Storage temperature
- Interface compatibility
Popular display interfaces include RGB, LVDS, MIPI DSI, SPI and MCU interfaces, depending on display size and system architecture.
Benefits of Combining Touch and LCD Technologies
Integrating a capacitive touch screen with an LCD display screen can simplify product design while improving usability.
Physical switches and buttons can be replaced by configurable graphical controls. The same display can therefore present different interfaces according to operating conditions.
This flexibility is particularly valuable when manufacturers need multilingual menus, changing functions, user authentication, parameter adjustments, diagnostics, or software-controlled interfaces.
A flat glass surface can also be easier to clean than equipment containing numerous mechanical controls.
Common Applications
Capacitive touch LCD modules are used throughout consumer, commercial, automotive and industrial sectors.
Typical applications include industrial human-machine interfaces, laboratory instruments, medical devices, retail payment terminals, self-service kiosks, building automation systems, home appliances, EV charging equipment, vehicle dashboards, navigation systems, access-control equipment, smart-home panels and portable electronic devices.
Industrial products should be selected according to environmental conditions rather than consumer electronics specifications alone.
How to Choose the Right Display Solution
Start by determining the physical screen size and active viewing area required by the enclosure. Then consider resolution, brightness, viewing distance and graphical complexity.
Next, evaluate the operating environment. Outdoor products may need high brightness and enhanced temperature tolerance, while factory equipment may require stronger EMI resistance and durable cover glass.
Check communication compatibility with the host processor because selecting the wrong interface can complicate hardware integration.
Finally, discuss customization requirements with the display supplier. These could include cover-lens dimensions, logo printing, bonding, connector modifications, cable length, touch-controller configuration and specialised surface coatings.
Factors Affecting Display Performance
Performance depends on more than panel specifications. Mechanical mounting, electrical design, firmware tuning, environmental conditions and optical construction can influence the final user experience.
Design engineers should consider electromagnetic noise, grounding, air gaps, bezel pressure, enclosure materials and nearby conductive components when integrating capacitive technology.
Prototype validation is particularly important before mass production because touch performance can change after installation inside the final enclosure.
Frequently Asked Questions
1. What is a capacitive touch screen?
It is a touch-sensitive panel that identifies user input by detecting changes in electrical capacitance.
2. What does an LCD display screen do?
It produces the visual interface, including images, text, icons, menus and graphical information.
3. Is an LCD automatically touch-sensitive?
No. Touch functionality normally requires a separate touch panel and controller integrated with the display.
4. Can capacitive screens support multiple fingers?
Yes. Many projected capacitive systems support multi-touch functionality.
5. Can capacitive touch work through glass?
Yes. Properly designed systems can detect touch through protective cover glass.
6. What is optical bonding?
Optical bonding uses transparent adhesive to join the display and touch panel, reducing the air gap between them.
7. Are LCD touch displays suitable for industrial machines?
Yes, provided the module meets the required environmental, electrical, mechanical and durability specifications.
8. What determines LCD image quality?
Resolution, brightness, contrast, viewing angle, colour performance and panel technology are major factors.
9. Can touch-screen cover glass be customised?
Yes. Dimensions, thickness, printing, surface treatments and various mechanical features can often be customised.
10. How should I select a touch LCD manufacturer?
Evaluate technical capability, quality control, customization support, documentation, testing procedures, production capacity and long-term product availability.
