Extrusion has become one of the most essential manufacturing processes in the plastics and polymer industry. From everyday plastic pipes and packaging films to advanced engineering compounds and masterbatch, extrusion technology enables manufacturers to process materials continuously while maintaining controlled quality and production efficiency.
Two major technologies dominate this field: the twin extruder and single extruder. Although both machines perform extrusion, their construction, processing capabilities, mixing performance, operating requirements, and applications can differ considerably.
Understanding these differences is essential for manufacturers looking to improve production efficiency, develop new polymer formulations, or invest in extrusion machinery.
Understanding the Basic Principle of Extrusion
Extrusion is a continuous manufacturing process where raw material is introduced into a heated barrel and transported through it by a rotating screw system.
As the material travels through the machine, thermal and mechanical energy causes it to soften or melt. The processed material is then pushed through a die or transferred to downstream equipment.
Several important processes can occur inside an extruder:
- Feeding
- Conveying
- Compression
- Melting
- Mixing
- Homogenization
- Venting
- Pressure generation
The design and number of screws significantly influence how efficiently these operations are performed.
How a Single Extruder Works
A single extruder contains one rotating screw installed inside a heated cylindrical barrel. It is among the most established technologies used in thermoplastic processing.
Raw material generally enters through a hopper. As the screw rotates, it transports the material along the barrel.
The material gradually experiences compression, heat, and mechanical friction until it becomes molten. The screw then helps create a consistent melt flow and sufficient pressure to move the material toward the die.
The process is simple in principle but highly effective for many large-scale manufacturing operations.
Major Advantages of Single Extrusion Technology
One reason the single extruder continues to be widely used is its combination of simplicity and productivity.
Major benefits include:
- Simple mechanical construction
- Relatively easy operation
- Lower maintenance complexity
- Stable melt pressure
- Reliable continuous production
- Competitive capital investment
- Efficient processing of standard thermoplastics
Manufacturers working with consistent, pre-compounded materials may not require the additional complexity of advanced mixing equipment.
In these situations, single-screw technology can provide excellent manufacturing economics.
Common Applications of Single Extruders
A single extruder is frequently used where the primary requirement is to melt and shape a polymer rather than modify its formulation.
Major applications include:
- Plastic pipe production
- Plastic profile manufacturing
- Film extrusion
- Sheet production
- Plastic tubing
- Wire insulation
- Cable coating
- Extrusion coating
Polyethylene and polypropylene are among the common polymers processed through single-screw systems.
How a Twin Extruder Works
A twin extruder contains two screws operating inside a shared barrel.
Depending on machine design, the screws may rotate in the same direction or in opposite directions. The relationship between these screws creates complex material movement that can significantly increase mixing and processing capabilities.
Material may repeatedly move between screw channels, experiencing controlled shear and redistribution.
This allows twin-screw technology to perform operations beyond conventional melting and conveying.
Why Twin Extruders Are Important for Complex Formulations
Modern polymer products frequently contain much more than base resin.
A formulation might contain polymer combined with:
- Pigments
- Calcium carbonate
- Talc
- Glass fibers
- Stabilizers
- Plasticizers
- Flame retardants
- Impact modifiers
- Processing additives
These ingredients must be distributed correctly to create consistent material properties.
A twin extruder provides the controlled mixing environment necessary for many such formulations.
Understanding Distributive and Dispersive Mixing
Mixing is one of the most important differences between the twin extruder and single extruder.
Distributive Mixing
Distributive mixing focuses on spreading ingredients throughout the polymer.
Suppose a small quantity of additive is introduced into a large amount of resin. The additive must be distributed throughout the material rather than remaining concentrated in certain regions.
Twin-screw technology is highly effective at repeatedly dividing and recombining material to improve distribution.
Dispersive Mixing
Dispersive mixing addresses clusters or agglomerates.
Pigments and mineral fillers, for example, can form groups of particles that need to be broken apart.
Mechanical forces generated during extrusion help reduce these agglomerates and distribute them more effectively throughout the polymer.

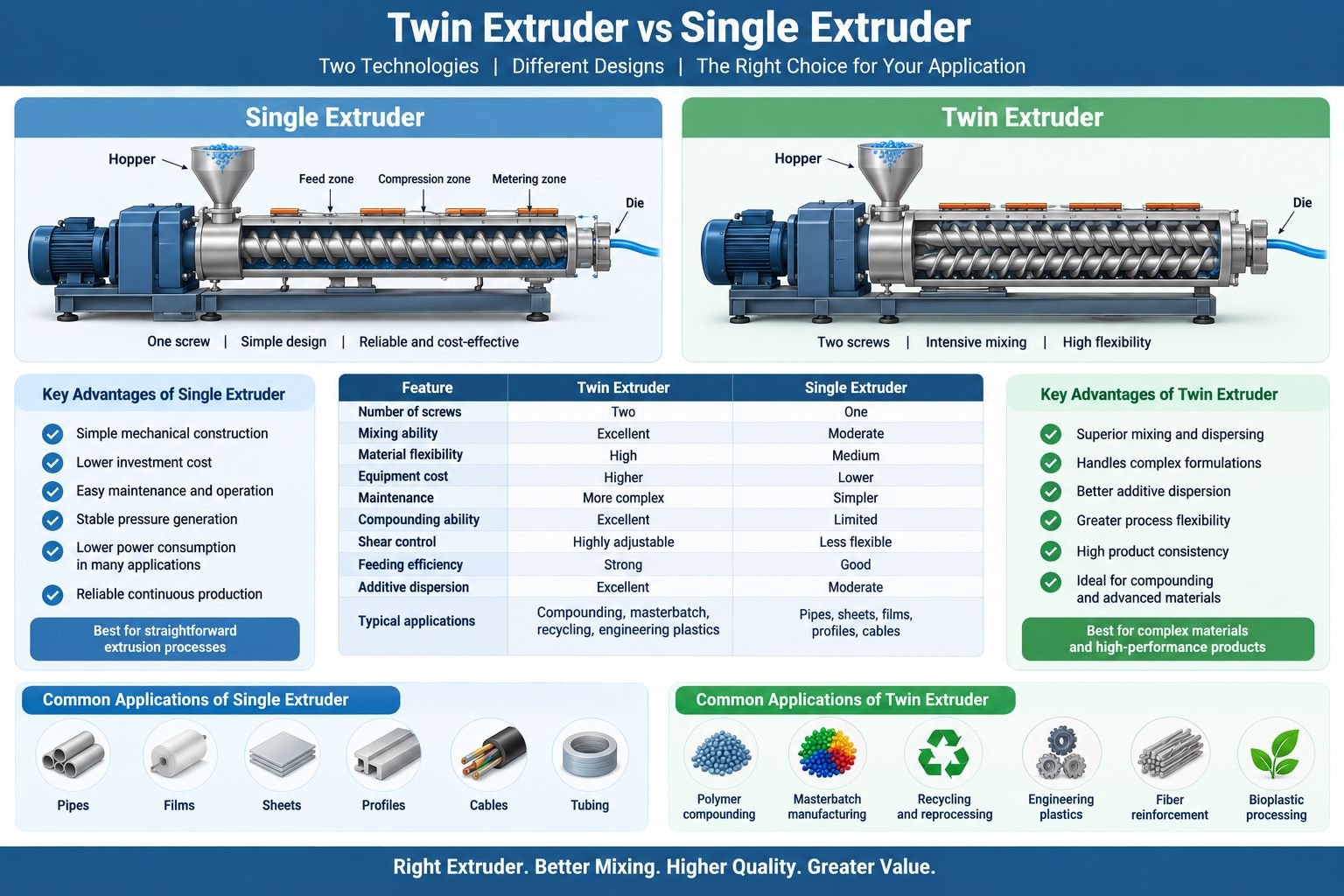

Twin Extruder vs Single Extruder: Key Differences
| Parameter | Twin Extruder | Single Extruder |
| Number of screws | Two | One |
| Mixing capability | High | Moderate |
| Compounding | Excellent | Limited |
| Standard extrusion | Good | Excellent |
| Machine complexity | Higher | Lower |
| Initial investment | Generally higher | Lower |
| Additive dispersion | Excellent | Application-dependent |
| Maintenance | More specialized | Simpler |
| Material flexibility | High | Moderate |
| Process customization | Extensive | Moderate |
The correct machine should therefore be selected according to processing needs rather than screw count alone.
Role of Twin Extruders in Masterbatch Manufacturing
Masterbatch production is one of the major applications of the twin extruder.
Masterbatch typically contains a high concentration of pigments or functional additives within a polymer carrier.
Achieving uniform dispersion is critical.
If pigments are not properly dispersed, downstream products can experience uneven coloration, streaks, or inconsistent appearance.
Functional additives must also be distributed correctly to deliver predictable performance.
The intensive mixing characteristics of twin-screw systems make them highly suitable for these requirements.
Twin Extrusion for Filled Polymer Compounds
Fillers are widely incorporated into polymers to modify mechanical properties, dimensional behavior, processing characteristics, or material economics.
Common fillers include calcium carbonate, talc, glass fibers, and other mineral or reinforcing materials.
Processing highly filled formulations can be challenging because adding significant amounts of solid material changes polymer viscosity and flow.
A twin extruder can provide dedicated feeding and mixing zones to improve filler incorporation and material homogenization.
Importance of Screw Design
The number of screws is important, but screw geometry is equally significant.
A single extruder typically uses a screw divided into functional zones for feeding, compression, melting, and metering.
Modern twin-screw machines can use modular elements that allow engineers to configure different processing sections.
These may include:
- Conveying elements
- Kneading blocks
- Mixing elements
- Reverse elements
- Specialized shear sections
The configuration influences material residence time, shear intensity, temperature development, pressure, and mixing quality.
Role of Extrusion in Plastic Recycling
The growth of plastic recycling has created new demands for extrusion equipment.
Recycled materials can contain moisture, printing residues, contaminants, volatile substances, or polymers with varying processing histories.
A single extruder can efficiently process suitable recycled materials when the feedstock is relatively clean and homogeneous.
When recycled material requires intensive blending, additive incorporation, property modification, or advanced devolatilization, twin-screw technology can provide additional flexibility.
Venting and Degassing During Extrusion
Moisture and volatile compounds can create serious quality problems.
If trapped inside molten polymer, gases may produce bubbles, surface imperfections, odors, and unstable processing.
Extrusion lines can include atmospheric and vacuum venting systems to remove unwanted gases.
A properly configured twin extruder can incorporate dedicated degassing sections, making it useful for recycling and specialty compounding applications.
Energy Efficiency and Production Economics
Energy consumption should always be considered when evaluating extrusion equipment.
A single extruder can provide excellent energy efficiency for conventional production because of its relatively straightforward mechanical design.
Twin-screw equipment can require higher installed power, particularly for intensive mixing applications.
However, the twin extruder may simultaneously perform multiple processing operations that could otherwise require separate equipment.
For this reason, manufacturers should consider energy consumed per kilogram of acceptable finished product rather than comparing motor power alone.
Factors to Consider Before Choosing an Extruder
Selecting extrusion machinery requires a detailed understanding of the entire manufacturing process.
Manufacturers should evaluate:
- Polymer type
- Raw material condition
- Additive requirements
- Filler concentration
- Required mixing intensity
- Production capacity
- Temperature sensitivity
- Degassing requirements
- Energy consumption
- Maintenance capability
A single extruder may be the preferred choice when processing relatively uniform material into conventional products.
A twin extruder may provide greater value when the application requires advanced compounding, mixing, filler incorporation, or polymer modification.
Frequently Asked Questions
What is the main difference between single and twin extruders?
A single extruder contains one screw, while a twin extruder uses two screws that provide greater mixing and processing flexibility.
Which extruder is better for compounding?
Twin-screw systems are generally preferred for complex compounding because of their strong distributive and dispersive mixing capabilities.
Which extruder is used for plastic pipes?
A single extruder is commonly used for many polyethylene and polypropylene pipe manufacturing applications.
Why are twin extruders used for masterbatch?
They provide the intensive mixing required to distribute concentrated pigments and functional additives throughout carrier polymers.
Can single extruders process recycled plastic?
Yes. They can process suitable recycled polymers when material quality and machine configuration are appropriate.
Which extruder has lower maintenance requirements?
A single extruder generally has simpler maintenance requirements because its screw and drive configuration is less complex.
What materials can twin extruders process?
They can process numerous polymers, blends, masterbatch formulations, filled compounds, reinforced materials, and suitable recycled plastics.
What is the purpose of degassing?
Degassing removes moisture, air, solvents, and volatile substances that may otherwise affect product appearance and processing stability.
Is a twin extruder more expensive?
Twin-screw equipment generally requires higher initial investment because of its more sophisticated mechanical and processing design.
How do I select the correct extrusion technology?
Evaluate material properties, final application, mixing requirements, output, energy efficiency, maintenance, and total manufacturing costs.
